Description

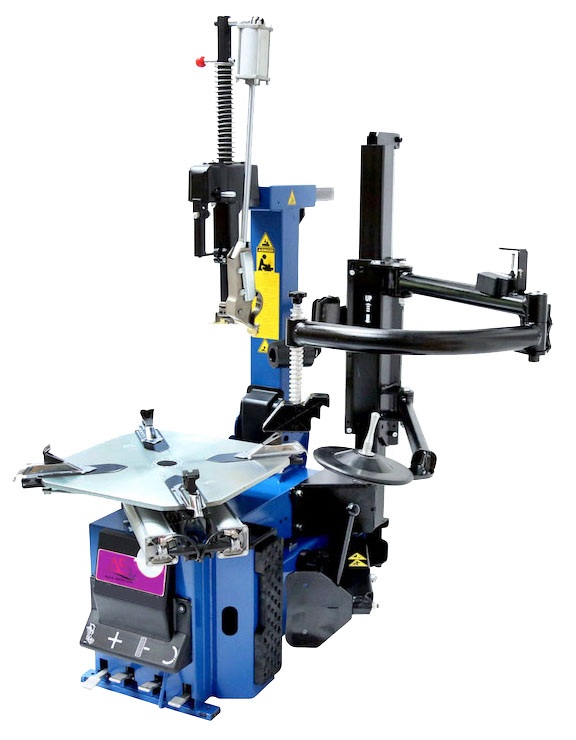

Fully Automatic Tyre Changer With Assist Arm

The tyre changer is probably one of the most common machines you will find in a tyre shop, with the increase in larger rims, run flat tyres and low profile tyres in the aftermarket. A tyre changer with an assist arm is becoming the first choice for fitters.

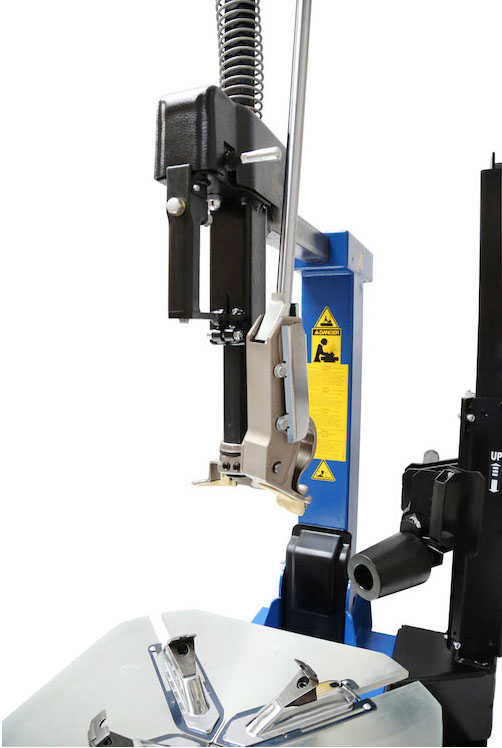

This is a fully automatic tyre changer meaning that the back column is operated by a pneumatic piston, controlled by a foot pedal. The Whole column will tilt back, away from the machine to clear the turntable. The mounting head is on a slide that moves back and forth and the mounting head height is controlled by hand. Once in position, the tyre machine will lock the head in both the horizontal and vertical axis with the simple press of a button. This speeds up removal and fitting of tyres that are the same size. The machine also features a pneumatically controlled 3 way assist arm to help with the fitting and demount of run flat or low profile tyres.

The Ayce Solutions tyre changer has been designed to be one of the strongest tyre machines on the market today. special adaptations including the 41mm hex arm which holds the mounting head, means that this is a tough tyre machine , able to handle difficult wheel and tyre combinations with ease. Strengthened channels in the tilt arm and throughout the base means that the Ayce Solutions tyre changer is solid, ridged and dependable. this is exemplified by the 2800kg of bead breaker force.

Run Flat Tyre Service

Run flat tyres have extremely stiff side walls, enabling the vehicle to drive slowly on a tyre that has deflated. Great idea, except it makes mounting and de-mounting a tyre just that little bit harder! That’s where a 3 way assist arm comes in. The combination of fixed roller, rotating clamp and lower lifting disc makes the job much easier. During the mounting process, the fixed roller and rotating clamp put pressure on the sidewall of the tyre, keeping it within the well of the rim so you are only stretching the bead as little as possible. This reduced the effort required as well as minimising the change of damaging the tyre or rim.

Advantages

• 41mm hex shaft for solid performance
• Tilt back automatic design (pedal operated)
• 2800kg bead breaker
• Strengthened construction of tilt arm base for solid performance
• Includes 3 way assist arm for run flat tyres
• Inbuilt fast inflation
• 230v plug and play (3 pin plug)

Specification

• External clamping – 10 – 21″
• Internal Clamping – 12 – 24″
• Rim Width – 3 – 13″
• Wheel Diameter – 1120mm
• Working pressure 8 – 10 bar
• Bead Breaker force – 2800kg
• Power supply – 230v
• RPM – 6.5/13
• Noise – <70db
• Dimensions – 1900 x 1950 x 2000mm
• Weight – 296KG
